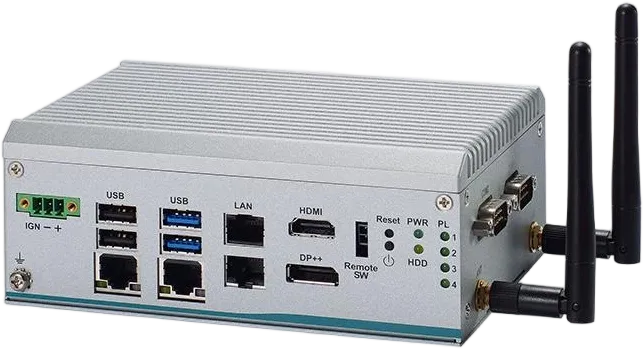

Alder Lake-N Processor N97
Fanless Embedded System
2 x USB 3.2, 2 x USB 2.0, 2 x COM, 4 x 2.5GbE LAN, DisplayPort, HDMI
DIMENSIONS
PROCESSOR
PROCESSOR GENERATION
FULL DETAILS
SKU
Dimensions
Processor
Intel® processor N97 (Alder Lake-N) (up to 3.6GHz, 12W); Intel Atom® x7211E (6W) or Intel® Core™ i3-N305 (9W) (Alder Lake-N) by request
Processor Socket Type
Processor Generation
Chipset
Graphics
Memory Type
Memory Capacity
Memory Speed
Memory Slots
LAN Controller
2 x 2.5GbE LAN or 4 x 2.5GbE LAN (Intel® I226-V)*
*The 4-LAN version only supports USB signals on both the M.2 E Key and PCIe Mini Card interface
Front I/O
2 x USB 3.2 Gen1
2 x USB 2.0
2 x 2.5GbE LAN or 4 x 2.5GbE LAN (Intel® I226-V)*
*The 4-LAN version only supports USB signals on both the M.2 E Key and PCIe Mini Card interface.
1 x HDMI (FHD)
1 x DisplayPort++
Rear I/O
Top Side:
2 x RS-232/422/485 (terminal block)
2 x Antenna opening
Storage
1 x 2.5″ SATA HDD/SSD (up to 15 mm height)
1 x NVMe by M.2 Key M 2280
Expansion
1 x Full-size PCI Express Mini Card slot (USB 2.0 + PCIe + SIM signal)
1 x M.2 Key M 2280 socket (for storage) (PCIe x2 signal)
1 x M.2 Key E 2230 socket (for Wi-Fi 6E) (USB 2.0 signal)
1 x Internal SIM slot for PCIe Mini Card slot
Operating Temp
Input Voltage
9 to 36 VDC (typical 12/24 VDC)
Certifications
