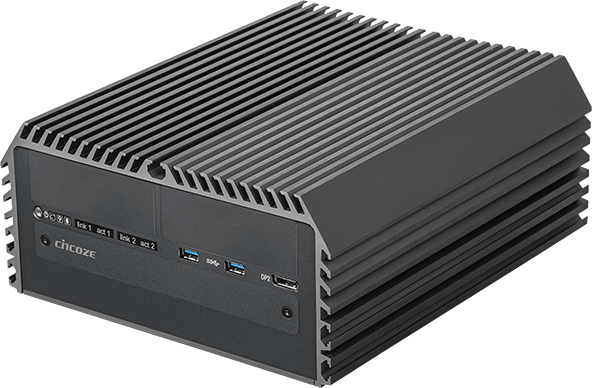

8th-Gen Intel® Core™ i3 / i5 / i7 Socket-type Processor
High Performance, Expandable and Modular Rugged Computer
8 USB, 2-6 Serial, 2-6 LAN, up to 4 POE, DVI, DisplayPort, CMI, CFM, SIM, Mini PCIe, PCI/PCIe x1
DIMENSIONS
PROCESSOR
PROCESSOR GENERATION
FULL DETAILS
SKU
Dimensions
Processor
Core™ i:; -Intel® Core™ i7-8700 Hexa Core 12M Cache, up to 4.6 GHz, TDP 65W; -Intel® Core™ i5-8500 Hexa Core 9M Cache, up to 4.1 GHz, TDP 65W; -Intel® Core™ i3-8100 Quad Core 6M Cache, 3.60 GHz, TDP 65W; -Intel® Core™ i7-8700T Hexa Core 12M Cache, up to 4.0 GHz, TDP 35W; -Intel® Core™ i5-8500T Hexa Core 9M Cache, up to 3.5 GHz, TDP 35W; -Intel® Core™ i3-8100T Quad Core 6M Cache, 3.10 GHz, TDP 35W; Pentium®:; -Intel® Pentium® G5400 Dual Core 4M Cache, 3.70 GHz, TDP 58W; -Intel® Pentium® G5400T Dual Core 4M Cache, 3.10 GHz, TDP 35W; Celeron®:; -Intel® Celeron® G4900 Dual Core 2M Cache, 3.10 GHz, TDP 54W; -Intel® Celeron® G4900T Dual Core 2M Cache, 2.90 GHz, TDP 35W
Processor Socket Type
Processor Generation
Chipset
Graphics
Memory Type
Memory Capacity
Memory Speed
Memory Slots
LAN Controller
2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
GbE1: Intel® I219
GbE2: Intel® I210
Front I/O
2 x USB 3.1 (Gen2)
1 x DisplayPort (DP2)
1 x Removeable HDD Slot
1 x AT/ATX Mode Switch
1 x CMOS Switch
Rear I/O
4 x USB 3.0
2 x USB 2.0
2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
2 x RJ-45 LAN
1 x PS/2
1 x DVI-I
1 x DisplayPort
1 x Mic In
1 x Line Out
2 x Antenna Holes
1 x Remote Reset Connector, 2-pin Terminal Block
1 x Remote Power On/Off Connector, 2-pin Terminal Block
1 x External Fan Connector, 4-Pin Terminal Block
2 x Universal I/O Expansion (via CMI module)
1 x PCI/PCIe Expansion Slot
Storage
2 x 2.5″ SATA HDD/SSD bay (Gen3), 1x Internal, 1x Front Accessable Supports RAID 0/1
3 x mSATA (shared by Mini-PCIe socket) (Gen3), BIOS Selectable
1 x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3)
Expansion
3 x Full-size Mini-PCIe Socket
2 x SIM Socket
1 x CFM (Control Function Module) Interface
2 x CMI (Combined Multiple I/O) High Speed Interface
2 x CMI (Combined Multiple I/O) Low Speed Interface
2 x Antenna Hole
1 x PCI/PCIe Expansion slot (with Optional Riser Card)
-Supports maximum dimensions of add-on card (H x L):111.15 x 235 mm
Operating Temp
Input Voltage
Power Input Voltage 9~48VDC
Support AT/ATX Power Type
Certifications
